Specifications

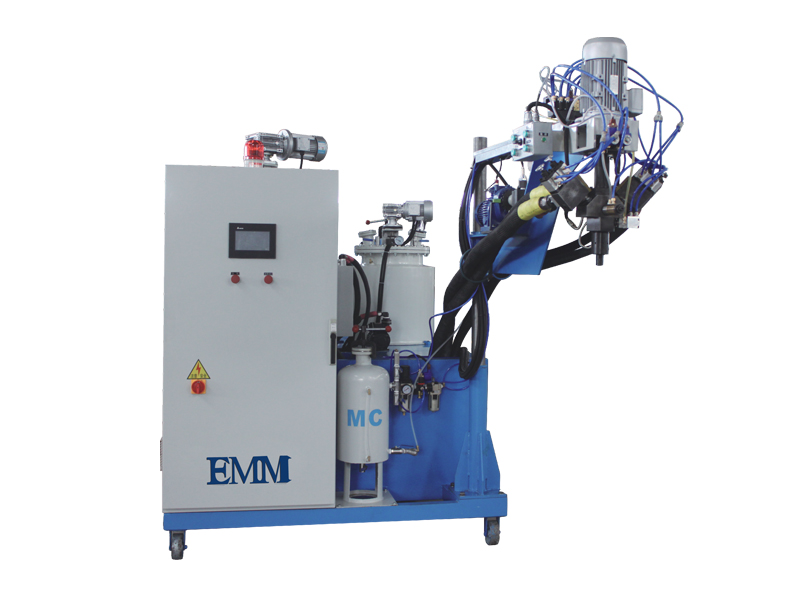

CA series two components Elastomer pouring machine
*easy maintenance
*simple operation
*easy moving
*can OEM
Quick Details
Processing Type:Foaming Machine, continuous Foaming Machine
Condition:New
Product Type:pouring machine, Polyurethane equipment
Place of Origin:China (Mainland)
Brand Name:EMM
Model Number:EMM series
Voltage:3*380V/ 50HZ
Power(W):27KW
Dimension(L*W*H):1800*1600*2200
Weight:1800kg
Certification:ISO9001-2000, ISO9001-2000
Warranty:ONE YEAR
After-sales Service Provided:Engineers available to service machinery overseas
color:cream
EMM seires two components Elastomer pouring machine
1.the measure is accurate,the miture ratio inaccuracy is less than <±0.3%
2.misce bene, the innovative mixing organization , dependable perfprmane
3.the late-model thermostatic apparatus, erature error is less than <±2°C
4.the fire-new discharge valve , good vacuum degree,the product is macroscopy and free of blowholes
5. the color sizing and additive join the mixing head dirctly , reduction of cost, increase of efficiency(optional parts)
EMM seires two components Elastomer pouring machine
item | description | producing area | quantity |
| 1 | Machine frame | China | 1set |
| 2 | A metering unit | Metering pump: Hafei; Other: Taiwan | 1set |
| 3 | B metering unit | Metering pump: Hafei; Other: Taiwan | 1set |
| 4 | Pressure limit and control unit | China | 2sets |
| 5 | Flow controls and filling unit | Taiwan-owned enterprise | 2sets |
| 6 | Prepolymer net like filter | China ST50-2A(300μm) | 1set |
| 7 | Moca net like filter | China SG50-2A(200μm) | 1set |
| 8 | Mixing head | China | 1set |
| 9 | Jib arm | China | 1set |
| 10 | Prepolymer barrel 220L | China; | 1set |
| 11 | Moca barrel 60L | China; | 1set |
| 12 | Temperature control machine | China | 2sets |
| 13 | Electric control system | PLC,input/output: DELTA Low-pressure,button: Schneider Frequency converter: DELTA Other:China | 1set |
| 14 | Piping system | High-pressure pipe:China Electromagnetic valve:YADEKE(Taiwan) Other:China | 1set |
| 15 | Deaeration system of the vacuum | Vacuum pump: 15L/s China Buffered barrel:20L | 1set |
