Specifications
low pressure foam machine
*easy maintenance
*simple operation
*easy moving
*can OEM

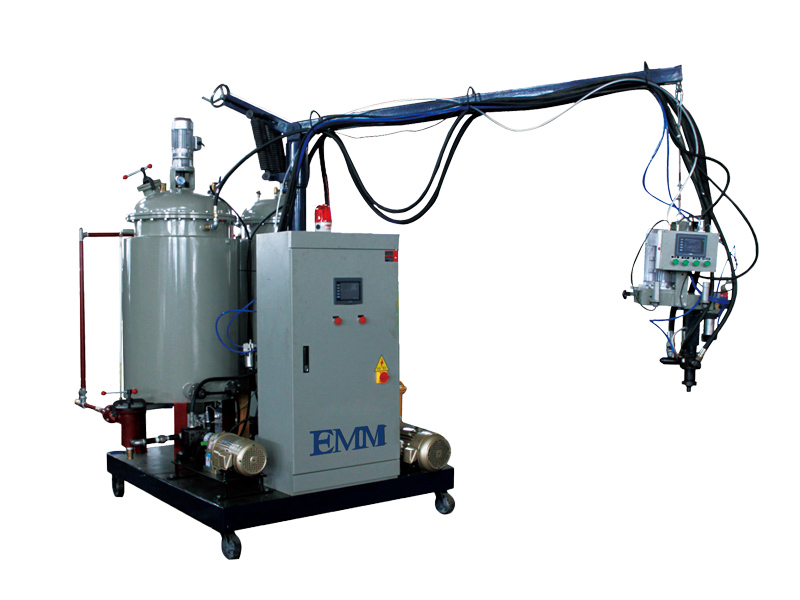

Polyurethane Low Pressure Foaming Machine (3 components)
Suitable for: Hard, high resilient, slow reslient, self-skin formed foaming.
Use: Insulating device, handwheel, vehiv le seat cushion, fillings, slab materials, toys, gym equipments etc.
Characteristics:
1,Mixing head: New-style pouring valve, accurate and synchronous outlet without block-up,good stirring, may be change may be change momentarily to produce the products of different colors and densities.
2,Metering pump: Use high precise metering pump, stepless variable drive, with range of ratio adjustment, reliable quality.
3,System: Microcomputer controlled, the control point of pouring quantity up to 999 ones, set up with temperature, pressure, rotating speed and cleaning systems.
4,Barrel: Layered-type insulating, SUS304 stainless steel.
5,Barrel: Layered-type insulating, using SUS304 stainless.
Outlet quantity:
EMM1(10-60g/s)
EMM2(50-250g/s)
EMM3(100-600g/s)
EMM4(400-2000g/s)
Quick Details
Processing Type: Foaming Machine, Foaming Machine
Condition: New
Product Type: foam machine, Polyurethane equipment
Place of Origin: China (Mainland)
Brand Name: EMM
Voltage: 3*380V/50HZ
Power(W): 18KW
Dimension(L*W*H): 2000*1600*2200
Weight: 1400kg
Certification: ISO9001-2000, ISO9001-2000
Warranty: ONE YEAR
After-sales Service Provided: Engineers available to service machinery overseas
color: cream and blue
