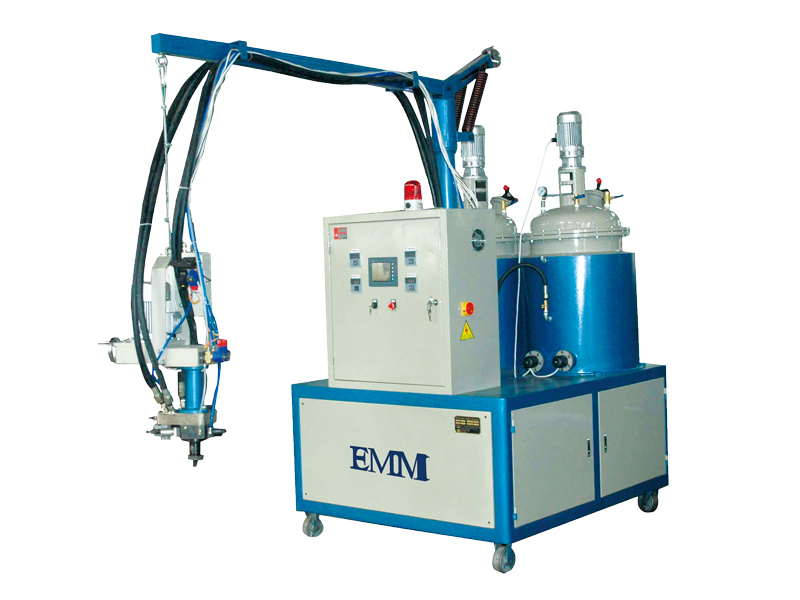

high quality low pressure polyurethane foam machine

low pressure polyurethane foam machine

Product Description


PU Foaming Machine Introduction:

1.This machine is used for continuous foaming for 2-15cm thickness panel, for example:PU insulation panel,PU sandwich panel.

2.The main components of the machine are imported original components,overall appearance, compact structure,easy maintenance,modular design approach.Our professional designers can meet any of your requirements.

3.The machin based on polyether polyol and polyisocyanate in the blowing agent, catalyst, emulsifiers and a variety of chemical additives present, after the foaming reaction and obtain foam.

PU Foaming Machine Technical Parameter:

OutputMdi:240-1200kg/g
Polyol:200-1000kg/h
Working Pressure100-150bar
Power60KW
Power Supply3*380V/50HZ
Control VoltageAC220V/24V

Componets of the machine:

1.Storage Components:

Double insulation stainless steel tanks.

Electrical resistance heater and cooling water solenoid valves for temperature conditioning

Chiller for option

2.Metering Unit

High precision axial piston pump,Variable output, robust manual adjustment via handwheel with integral precision measuring scale

Magnetic coupling ensures no material leakage

Digital pressure gauge for controlling pressure

3.Mixing Head

Auniform foam mixture distribution on the continuously moving facing

High pressure impingement style mixing,

Self-cleaning design

4.Electrical control system

Electric wiring and connections for each equipment part of the high pressure foam dispensing machine.

Electric control cabinet complete with electric power part

PLC,electric controls and devices for high pressure foaming machine

Alarm function with acoustic warning.

PU Foaming Machine Working Process Draft:

Our Services


Professional R&D Team:

Specializes in desiging,manufacturing and supplying custom engineered.

Our designers can meet any of your requirements.

Professional after-sale service.

1 Year warranty.

Lifetime Technical Service.

Quick Details


Processing Type: Foaming Machine
Condition: New
Product Type: PU Foam Machine
Place of Origin: China (Mainland)
Brand Name: EMM
Voltage: 380V
Power(W): 60KW
Dimension(L*W*H): 4500*2500*2000MM
Weight: 1500KG
Certification:CE, ISO9001
Warranty: 1 year warranty
After-sales Service Provided: Engineers available to service machinery overseas
Feature: Automatic
Mix head: Self-clean mix head, patented technology
Electrical control system: Fully controlled by Micro-computer
Metering unit: High precision positive displacement gear pump
Color: Blue and white, or customized
